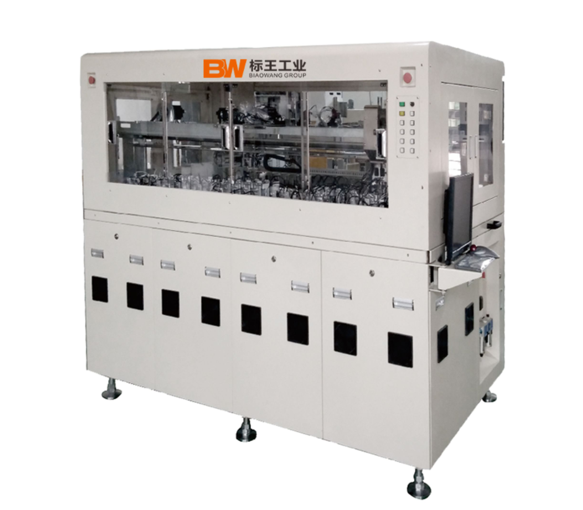

IC loading sorting machine500

Model: model (bw-fx-500); product size: min. 5 * 5mm, max. 30 * 25MM; number of suction cups: 11 * 4 + 2 = 46pcs; pallet overall size (length x width): 315x135.9mm (according to the customer); IC type: QFP TSOP BGA

IC testing and sorting machine550

Model: model (bw-fx-500); product size: Minimum 5 * 5mm, maximum 30 * 25MM; number of test positions: 16x8 = 128pcs; pallet overall size (length x width): 315x135.9mm (according to customers); sorting type: 4 (customizable) PCs

IC testing and sorting machine660

Model: model (bw-gdw-660); product size: internal size: W1250 * h1500 * d800; external size: w2680 * h2230 * d1590; temperature range: - 10 ℃ ~ + 150 ℃; maximum test speed: 10MHz; number of slots: 60; power supply voltage range: PS1 ~ PS4: + 0.5V ~ 4V / 25A PS1 ~ PS2: + 0.5V ~ 5V / 30A

Automatic dust-free / oxygen free tunnel furnace

Model: Model Name: bw-wcwy-550; size: inner size: l3800 * W550 * H50 (mm); outer size: l5500 * w1400 * h1850 (mm); temperature range: + 60 ℃ - - Max300 ℃; temperature uniformity: 300 ℃ ± 1.5%; temperature rise time: + 60 ℃ - - 300 ℃ 45mins; nitrogen equipment: N2: (3.5kgf / cm ²) 99.9995%

Automatic dust-free / oxygen free tunnel furnace

Model: bw-wcwy-550ir (oxygen content ≤ 100ppm); size: inner size: 1650 * 660 * 50 (mm); outer size: 3650 * 1450 * 1650 (mm); temperature range: + 60 ℃ --- Max300 ℃; temperature control: PLC, PID control, electronic induction, digital display; temperature system: CA induction bar for input, SSR for output without contact

Roll to roll dustless tunnel furnace

Model: Model Name: bw-wcsd90-16; size: internal size: l15000 * w1200 * H100 (mm); external size: l16000 * w1500 * h2200 (mm); temperature range: RT-200 ℃; temperature uniformity: 200 ℃ ± 1.5%; temperature rise time: RT ---- 200 ℃ < 35mins; conveying system: Teflon cloth, 0.5-2m/min adjustable

Dust-free/oxidation-free oven

Model: model: bw-2wchx-600; size: internal size: 500 * 600 * 500 * 2pcs (mm); external size: 1400 * 1850 * 1200 (mm); temperature range: + 60 ℃ - - Max300 ℃; temperature uniformity: 300 ℃ ± 1.5%; heating time: + 60 ℃ - - 300 ℃ 45mins Model: model: bw-wchx-600; size: internal size: 500 * 600 * 500 * 2pcs (mm); external size: 1400 * 1850 * 1200 (mm); temperature range: + 60 ℃ - - Max300 ℃; temperature uniformity: 300 ℃ ± 1.5%; heating time: + 60 ℃ - - 300 ℃ 45mins

Dustless baking oven

Model: Model Name: bw-wckx10-111; size: internal size: w800 * H1100 * D600 (mm); external size: w1350 * H2000 * D900 (mm); temperature range: RT --- Max250 ℃; temperature uniformity: 250 ℃ ± 1.5%; temperature rise time: RT --- 250 ℃ 35mins; material: SUS304 stainless steel plate in inner bore, SS41 × steel plate baking paint outside

Crystal vibration dispensing curing furnace

Model: Model Name: bw-jtsd-200; size: inner size l3860 * w780 * H100 (mm); outer size: l6700 * w1400 * h1600 (mm); temperature range: + 60 ℃ --- max260 ℃; temperature uniformity: 250 ℃ ± 5 ℃; temperature rise time: RT --- 250 ℃ 45mins; nitrogen configuration: N2: (3.5kgf / cm2) 99.9995%; oxygen content: ≤ 100ppm

Dustless Nitrogen Filled Tunnel Furnace

Model: Model Name: bw-qwsd20-4; size: inner size: L3000 * W600 * H50 (mm); outer size: l4000 * w1230 * H1400 (mm); temperature range: + 60 ℃ --- max260 ℃; temperature uniformity: 250 ℃ ± 5 ℃; temperature rise time: RT --- 250 ℃ 45mins; nitrogen equipment: N2: (3.5kgf / cm ²) 99.9995%

IR tunnel furnace

Model: Model Name: PCB IR curing furnace; size: internal size: L3000 * w450 * H100 (mm); external size: L3000 * w1200 * H1100 (mm); design temperature: rt-150 ℃; temperature accuracy: ± 3 ℃; conveying system: stainless steel long pin chain, width 50-450mm adjustable, speed 0.5-3m/min; heating system: IR cesium lamp radiation; power supply: AC380V three-phase five wire system 50Hz 15kw

chip testing fixture
